RBP Manufacturing

WSSX-14T

WSSX-14T

$54.50 USD
$54.50 USD
Sale Sold out
  • WIDE SERIES
  • STAINLESS STEEL
  • PTFE LINER STANDARD
  • OPTIONAL STAKING GROOVE (ADD SUFFIX “V”)

BALL

  • 400 SERIES STAINLESS STEEL
  • HEAT TREATED

RACE

  • 17-4 PH STAINLESS STEEL
  • HEAT TREATED

LINER

  • PTFE FABRIC

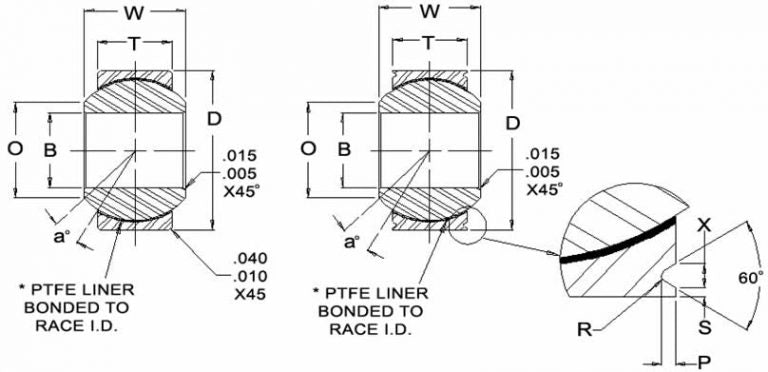

PLAIN BEARING PART # GROOVED BEARING PART # B DIA D DIA W WTH T WTH O SHOULDER DIA BALL DIA a MIS ANGLE STATIC RADIAL LIMIT LOAD STATIC AXIAL LIMIT LOAD DYNAMIC OSCILLATING LOAD APPROX WEIGHT
.0000 -.0005 .0000 -.0005 .000 -.002 .005 -.005 REF REF MIN (lbs) (lbs) (lbs) (lbs)
WSSX3T WSSX3TV .1900 .6250 .437 .327 .301 .531 15 2,500 1,770 4,900 .031
WSSX4T WSSX4TV .2500 .6250 .437 .327 .301 .531 15 5,500 1,770 4,900 .031
WSSX5T WSSX5TV .3125 .6875 .437 .317 .360 .593 14 9,400 1,640 6,050 .035
WSSX6T WSSX6TV .3750 .8125 .500 .406 .466 .687 8 13,700 2,630 8,310 .060
WSSX7T WSSX7TV .4375 .9375 .562 .442 .537 .781 10 20,700 3,650 11,750 .080
WSSX8T WSSX8TV .5000 1.0000 .625 .505 .607 .875 9 21,400 4,970 14,950 .100
WSSX9T WSSX9TV .5625 1.1250 .687 .536 .721 1.000 10 26,600 5,370 18,100 .135
WSSX10T WSSX10TV .6250 1.1875 .750 .567 .747 1.062 12 29,000 6,130 20,250 .160
WSSX12T WSSX12TV .7500 1.3750 .875 .630 .845 1.250 13 37,000 7,730 26,200 .240
WSSX14T WSSX14TV .8750 1.6250 .875 .755 1.061 1.375 6 65,200 10,800 33,600 .350
WSSX16T WSSX16TV 1.0000 2.1250 1.375 1.005 1.269 1.875 12 104,000 19,300 56,250 .970
WSSX24T* WSSX24TV* 1.5000 2.9170 1.962 1.500 1.927 2.750 11 281,531 43,180 112,527 2.250
