Micro Stub Rear Brake Kit, 24T - 930 with Wilwood 4 Piston Calipers

The Micro Stub Rear Disc Brake Kit, manufactured in the USA by RBP, is designed to enhance wheel travel by repositioning the bearing housing and CV joint closer to the wheel. This reduces CV angle and, combined with longer axles, allows greater wheel movement compared to standard IRS bearing housings.

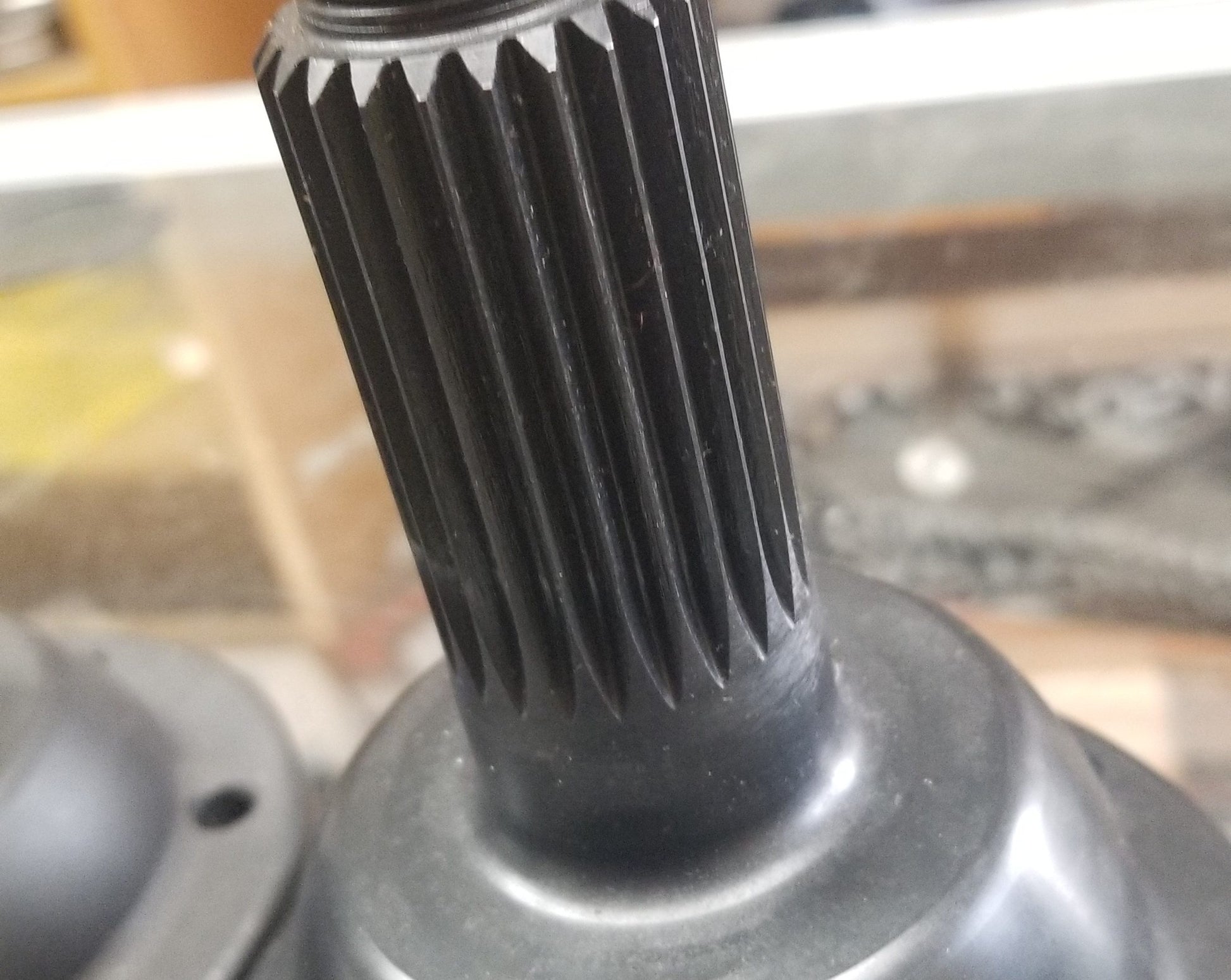

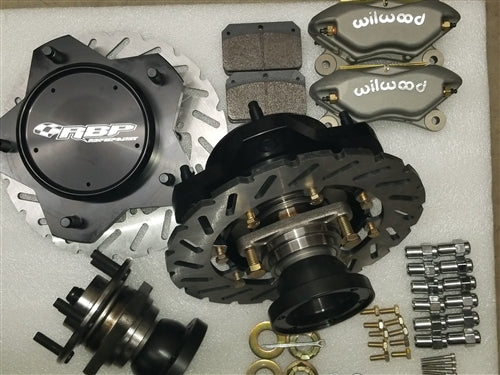

The kit features 24-tooth (1.300" diameter) Chromoly 4340 micro stubs, 6061 T-6 billet aluminum hats, wheel adapters for 5 x 205 (VW), hub-centric caps, Wilwood 4-piston calipers with brake pads, 60-degree lug nuts, and hardware.

The heavy-duty G3 bearing hub assembly is a modified stock 27-tooth unit, bored and re-broached for the larger proprietary 24-tooth axle.

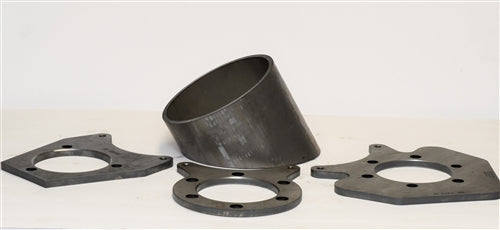

Mounting plates for the arms are sold separately.
